Compact Substation
Box-type substation is our company in the digestion and absorption of foreign advanced technology and design concepts on the basis of China's urban power distribution network designed and manufactured specifically for the miniaturization of pre-assembled substations.
Categories：
Compact Substation
Product introduction
Box-type substation is our company in the digestion and absorption of foreign advanced technology and design concepts on the basis of China's urban power distribution network designed and manufactured specifically for the miniaturization of pre-assembled substations, with reliable power supply, rapid installation, easy to operate, low maintenance, beautiful appearance, and other significant advantages; widely used in the 12 kV ~ 40.5 kV power distribution system, industrial and mining enterprises, airports, stations, ports, terminals, highways, Metro, residential neighborhoods, large buildings and other places.
Product features
1, Compact structure, small volume, small area, easy transportation and installation, the structure of the box variable is divided into “eye” word, “Pin” word, sub box type.
2, The shell adopts domestic advanced technology and new materials for design and production. It has the characteristics of solid, heat insulation, dustproof, moisture-proof and small animal-proof, etc. The shell can be made of steel plate, composite plate, non-metal and other materials.
3, Using labyrinth plate structure, not only beautiful appearance, easy to disassemble, and has good ventilation and heat dissipation performance.
4、It adopts full insulation and full protection design.

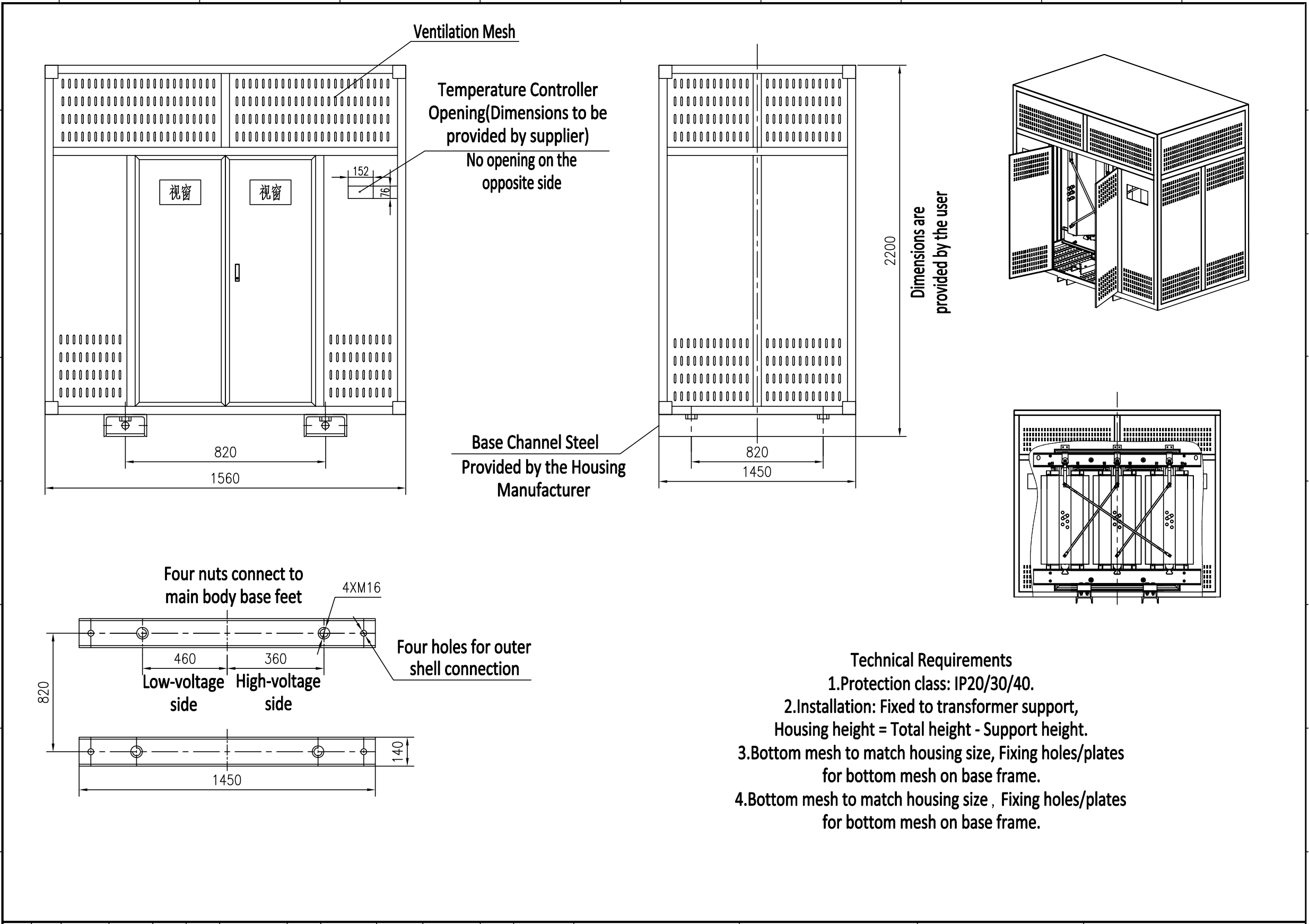

5, The skeleton structure of the box is made of channel steel and angle steel, which has enough mechanical strength, and the internal and external surfaces of each part of the box have been treated with anticorrosive spraying, which ensures that it will not be rusted for a long time and has a durable protective layer. The top cover of the box is double-layer structure to prevent heat radiation to increase the indoor temperature.
6, Protection performance is perfect, easy to operate, can be measured on the high and low voltage side.
7, All the doors of the box are equipped with lighting devices which are automatically switched on and off with the opening and closing of the doors.
8, all the doors of the box are opened outward, the opening angle is more than 90 °, and there is a positioning device. The doors are equipped with handles, secret doors, and locks that can prevent rain, rust and blocking.
Application environmental conditions
1、Use place: outdoor;
2、Ambient temperature: -45℃～+45℃;
3、Relative humidity: daily average relative humidity ≤ 95%, monthly average relative humidity ≤ 90%;
4、Altitude: ≤2000 meters;
5、Filth level: Ⅳ;
6、Seismic intensity: 8 degrees;
7、Maximum wind speed: 35m/s.
