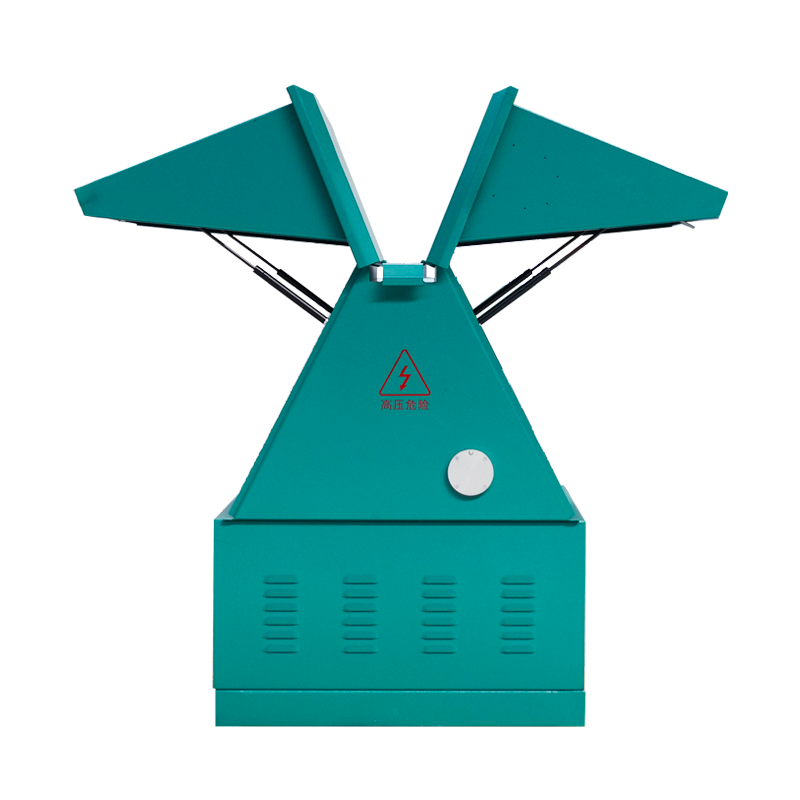

Cable Branch Box
● Material: stainless steel, cold rolled steel ● Product features: waterproof and rainproof, durable ● Product size and color: support customization ● Installation place：Indoor/outdoor
Categories：
Cable Branch Box
Technical parameters
Execution standard: GB/T7251.GB/T7251.2
Rated insulation voltage: AC690V
Rated working voltage: AC400V
Protection grade: IP44
Rated working current：63-630A
Rated short-time withstand: 10KA/S
Application environmental conditions
Air temperature: the maximum temperature of indoor environment does not exceed +40℃, the maximum temperature of indoor environment does not exceed +45℃, the lower limit of ambient temperature is -25℃, the maximum daily temperature difference is 25K;
Pollution level: Ⅲ(indoor)/IV(outdoor);
Humidity: the average daily value of relative humidity is not more than 95%, and the average monthly value is not more than 90%;
Altitude: no more than 1000m above sea level;
Solar radiation intensity: 0.1W/cm2;
Seismic capacity: horizontal acceleration of the landform 0.2g m/s2, vertical acceleration of the ground 0.15g m/s2, sinusoidal resonance of 3 cycles of the safety factor of not less than 1.67.
Cited standards
GB 7251 Low-voltage switchgear and control equipment
GB 14048 Low-voltage switchgear and control equipment
GB/T 20641 Low-voltage switchgear and control equipment, the general requirements of the empty casing
GB 4208 Enclosure protection level (IP code)
GB 4720 Low-voltage electrical and electronic control equipment
