10KV European Cable Branch Box
● Material: stainless steel, cold rolled steel ● Product features: waterproof and rainproof, durable ● Product size and color: support customization ● Installation place：Indoor/outdoor
Categories：
Cable Branch Box

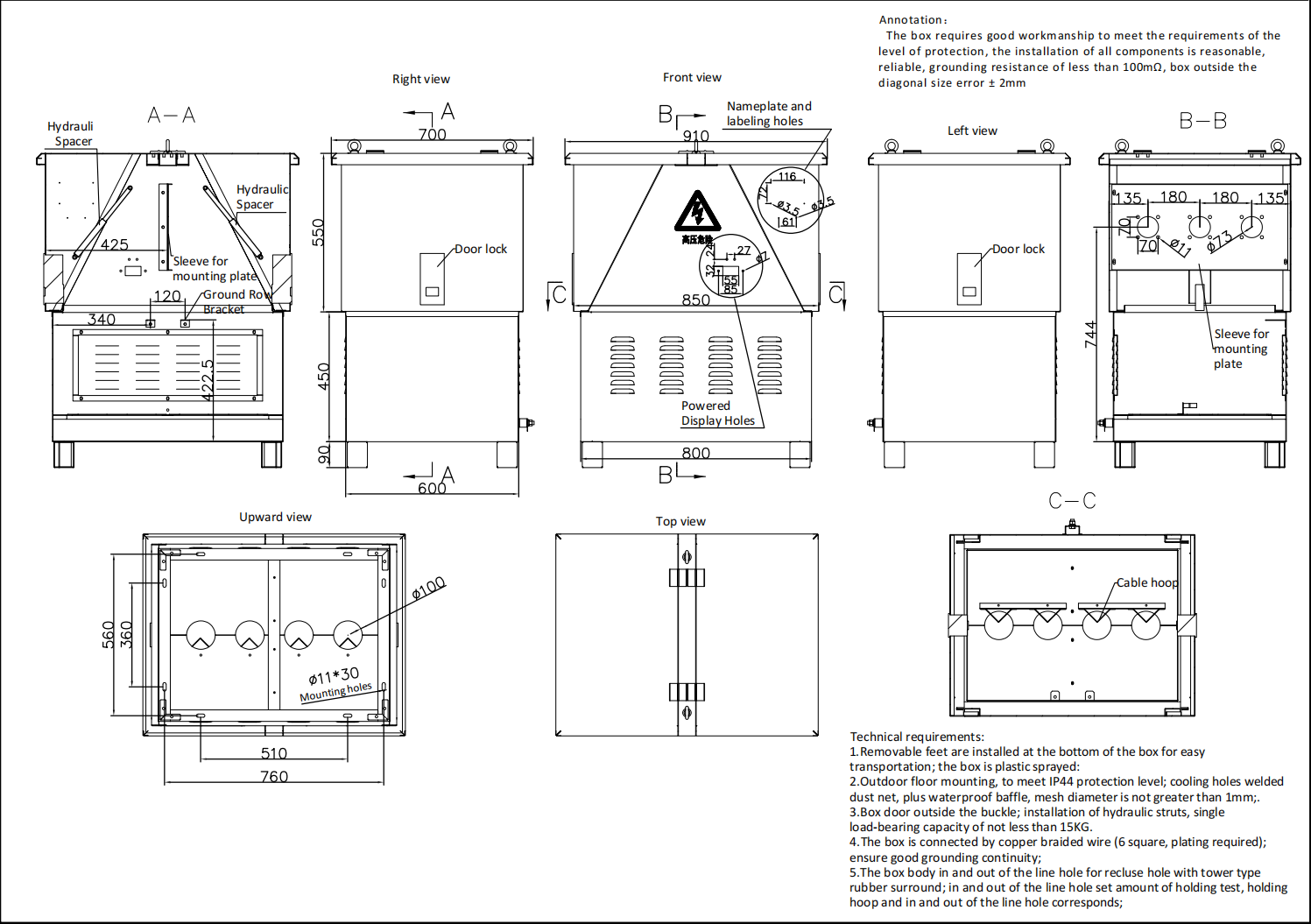

Product Overview
European cable branch box is widely used in recent years in the power distribution system cable engineering equipment, its main features are two-way open door, the use of through-wall casing as a connecting busbar, with a small length, the cable arrangement is clear, three-core cables do not need to cross the advantages of a large span. The cable glands used are in accordance with DIN 7636. Generally, the rated current 630A bolted connection type cable glands are used.
Functional Characteristics
Fully insulated and sealed structure, no need for insulation distance, reliable guarantee of personal safety.
Dust-proof, flood-resistant, corrosion-resistant, maintenance-free, can be used outdoors as well as diffuse in water, applicable to any harsh environment.
Compact structure, small volume, easy installation, beautiful appearance, suitable for urban power grid renovation projects.
Flexible inlet and outlet lines, can be configured according to the need for multiple branch inlet and outlet lines to meet a variety of wiring requirements.
It can be equipped with charged display, short-circuit indicator and lightning arrester to improve the reliability and safety of power supply.
Main technical parameters
Item name | Unit | Technical parameters |
Rated voltage | kV | 12 |
Rated frequency | Hz | 50 |
Rated current | A | 630 |
Rated short-time withstand current (main circuit) | kA | 20 |
Rated peak withstand current (main circuit) | kA | 50 |
Rated short-circuit duration (main circuit) | s | 2 |
Rated short-time frequency withstand voltage | kV | 42 |
Rated lightning impulse withstand voltage | kV | 75 |
Enclosure protection class |
| IP43 |
Operating conditions
Ambient temperature:Maximum temperature:+40℃, minimum temperature -30℃.
Wind speed: quite 34m/s (not more than 700Pa); and
Humidity:average value of daily relative humidity is not greater than 95%, average value of monthly relative humidity is not greater than 95%, average value of monthly relative humidity is not greater than 95%.
Monthly relative humidity average value is not more than 95%.
Vibration: Horizontal acceleration is not greater than 0.4m/s2, vertical acceleration is not greater than 0.15m/s2.
Installation site inclination: not more than 3°; and
Installation environment: the surrounding air is not corrosive, flammable gases, water vapor and other obvious pollution, the installation site without violent vibration.
